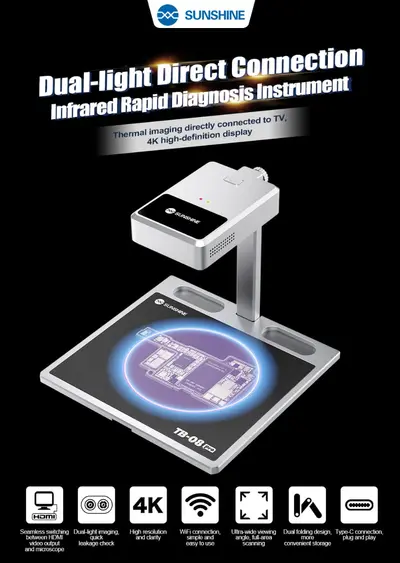

The TB-O8 ShortCam III is a high-resolution dual-light thermal imaging camera designed for precise fault detection in printed circuit boards (PCBs) and other electronic components. Its advanced features make it suitable for applications such as mobile phone repair, vehicle maintenance, and graphics card diagnostics.

Key Features:

High Resolution Imaging: Equipped with a 256×192 thermal sensor and a 4K (3840×2160) visual camera, the ShortCam III delivers ultra-clear images, enabling detailed analysis of tiny leakage components.

•Dual-Light Imaging: Combines visible light and infrared imaging, supporting multiple display modes including thermal imaging, visible light, dual-light fusion, and a one-click quick check for efficient fault detection.

Ultra-Wide Field of View: With a 56°×42° field of view, it accommodates various PCB sizes, making it versatile for different repair scenarios.

•HDMI Output: Features HDMI video output for seamless switching between microscope views and display screens without the need for a computer, streamlining the repair process.

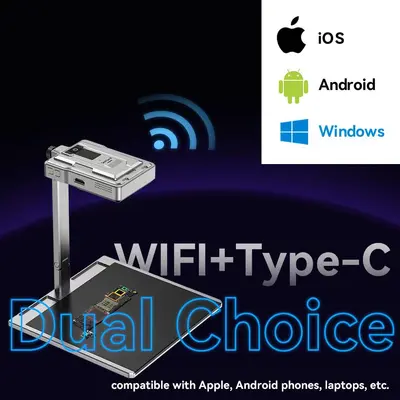

•Connectivity: Supports Type-C USB 2.0, WiFi, and HDMI interfaces, allowing connections to devices running Android 6.0, iOS 12.0, Windows 7, and above.

•Durable Design: Constructed with a full metal alloy body, it offers excellent heat dissipation and electromagnetic compatibility (EMC) performance, ensuring durability and reliability.

•Foldable Bracket: The innovative double-folding design of the bracket enhances portability and convenience in various working environments.

Specifications:

•Thermal Camera:

•Detector Type: Uncooled Vanadium Oxide (VOx)

•Resolution: 256×192

•Wavelength Range: 7.5–13.5 µm

•Field of View (FOV): 56°×42°

•Visual Camera:

•Resolution: 3840×2160 (4K, 8 MP)

•Interface and Display:

•Display Modes: Visual, Thermal Imaging, Quick Check

•Interfaces: Type-C USB 2.0, WiFi, HDMI

•Image Format: JPG

•Physical Dimensions:

•Size: 192.2 mm × 183.3 mm × 203.7 mm

•Weight: 942.3 g

•Power:

•Input Voltage: 12V DC

•Power Consumption: 6W

•Operating Environment:

•Storage Temperature: -20°C to 60°C

•Working Temperature: 3°C to 45°C

•Temperature Measurement:

•Measurement Distance: 16.5 cm

•Accuracy: ±3°C or ±3% (whichever is greater)

•Range: -20°C to 550°C

•Supported Platforms:

•Android 6.0 and above

•iOS 12.0 and above

•Windows 7 and above

The ShortCam III’s combination of high-resolution imaging, dual-light functionality, and versatile connectivity options makes it a valuable tool for professionals in electronic diagnostics and repair.
